BKS - Front Door Mortise Lock B-0024, 20/65 mm, PZW Version, Square Forend, DIN left

Front Door Mortise Lock 0024 PZW 20/65/92/10 mm DIN left Silver Square Forend

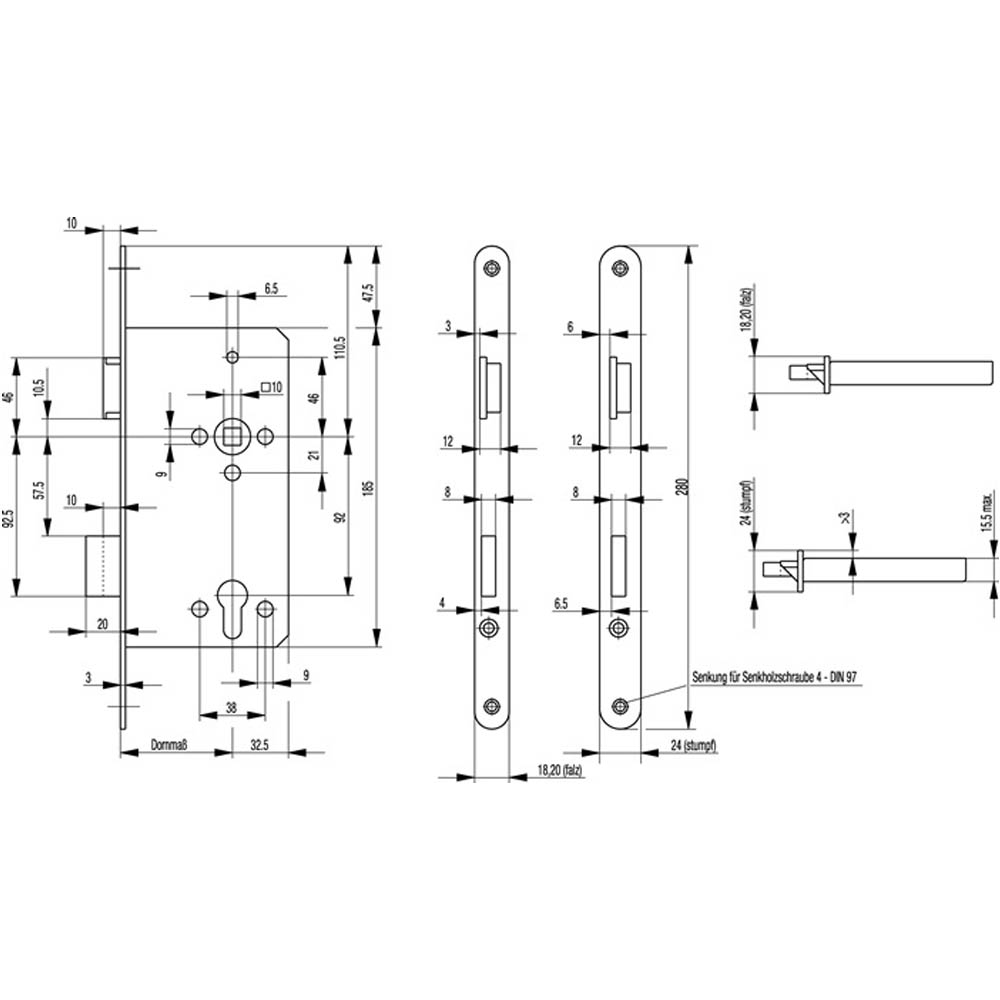

Click on the drawing for details!

Front door lock B-0024 for single-leaf doors

• Manually locking closure system
• For single-leaf doors
• Can be combined with electric striker

Product description:

• PZW Version
• Fully enclosed lock case
• 2-turn
• With privacy function
• Square forend in silver
• Forend length 280 mm
• Forend width 20 mm
• Backset 92 mm
• Square spindle 10 mm
• Latch and bolt made of zinc die-cast
• Without strike plate


DIN left: You are facing the door, which opens towards you. If the door hinges are on the left, it is called DIN left.

DIN right: You are facing the door, which opens towards you. If the door hinges are on the right, it is called DIN right.
