BKS - Front Door Mortise Lock B-0024, 22/60 mm, PZW Version, Square Faceplate, DIN left

Front Door Mortise Lock 0024 PZW 22/60/92/10 mm DIN left Silver Square

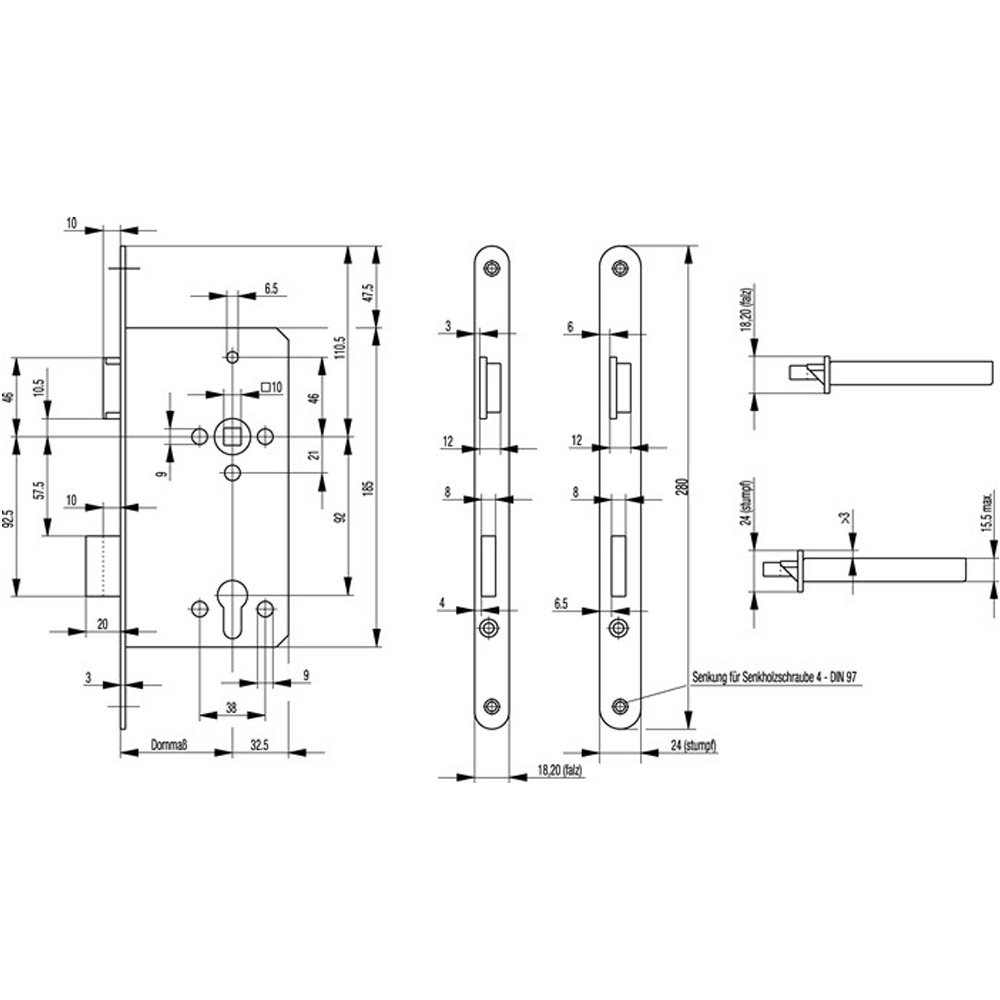

Please click on the drawing!

Front door lock B-0024 for single-leaf doors

• Manually locking closure system
• For single-leaf doors
• Compatible with electric opener

Product description:

• PZW Version
• Fully enclosed lock case
• 2-turn
• With switch
• Silver faceplate
• Faceplate length 280 mm
• Faceplate width 22 mm
• Backset 92 mm
• Square 10 mm
• Latch and bolt made of zinc die-cast
• Without strike plate


DIN left: You are in front of the door that opens towards you. If the door hinges are on the left, it is referred to as DIN left.

DIN right: You are in front of the door that opens towards you. If the door hinges are on the right, it is referred to as DIN right.
