BKS - Front Door Mortise Lock B-0024, 20/55 mm, PZW Design, Square Faceplate, DIN Right

Front Door Mortise Lock 0024 PZW 20/55/92/10 mm DIN Right Silver Square

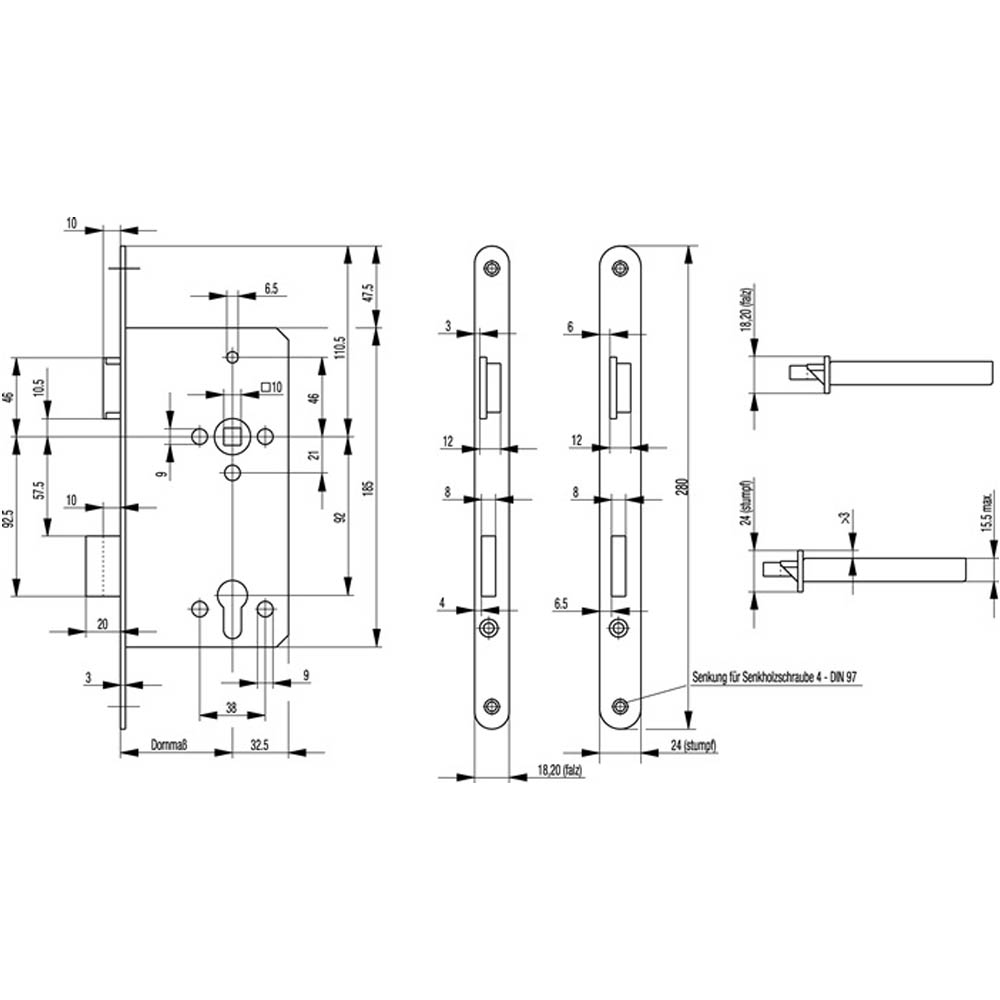

Please click on the drawing!

Front Door Lock B-0024 for single-wing doors

• Manually locking closure system
• For single-wing doors
• Can be combined with electric opener

Product Description:

• PZW Design
• Fully enclosed lock case
• 2-turn
• With exchange
• Faceplate in silver
• Faceplate length 280 mm
• Faceplate width 20 mm
• Distance 92 mm
• Square 10 mm
• Latch and bolt made of zinc die-casting
• Without strike plate


DIN Left: You stand in front of the door that opens towards you. If the door hinges are on the left, it is referred to as DIN Left.

DIN Right: You stand in front of the door that opens towards you. If the door hinges are on the right, it is referred to as DIN Right.
